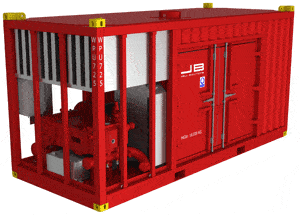

WPU 725 Well Service Pump Unit

wpu725

Technical Data

Engine rating : 725BHP, C-rated. Safety system : 3GHI Protection™. Control system : Electrical, PLC based. Max work pressure : 15.000 PSI. Pumping rate : 2-10 BPM (4″ fluid end) Triplex pump : GD-600 (Options) Diesel capacity : 8 hours

Weight : 18.000 kg. Length : 6058 mm. Width : 2438 mm. Height : 3050 mm.

Sound pressure level : 83 dBA (SPL) Certified according to : NORSOK Z-015, DNV 2.7-1, CE and ATEX Third party approval : DNV Air : 5-8 BAR Power supply : Multi voltage, 100-250VAC. Discharge connection : 2″ fig. 1502 WECO Suction connections : 4″ fig. 206 WECO

Options: Open skid version Logging system Misc. fieldbus connections to plant system


WPU 725 is designed for efficient operation and easy access for maintenance. The unit has many new innovative solutions that simplify maintenance and operation. The unit is equipped with Caterpillar® 725 BHP, C-rated engine. The engine meets current EPA Tier 2, EU Stage III, and IMO emissions regulations and provides a solid building block to handle future emissions challenges. Caterpillar® is industry-leading on fuel system expertise and provides lower specific fuel consumption, particularly at part load, while reducing smoke and emissions. This unit is designed specifically for well service applications in 3G areas (Zone 2) and is CE and ATEX approved. The unit is capable of operating in ambient temperatures from –20° C to +35° C.

• Simplified electrical control system gives more flexibility at a lower cost. • Unit is certified for operation without exhaust flame traps in Zone 2 area. • Unit is is delivered with our 3GHI Protection™ system . • Easy access for maintenance, large doors on both sides of engine. • NORSOK Z-015 certified. • Engine driven lube oil system for triplex pump. • Reduced weight. Solid Skid Frame The skid frame is designed and approved according to DNV 2.7-1 and EN 12079. The skid frame is sandblasted and painted according to offshore specifications in NORSOK M-501. Unit can be stacked in height during storage or boat transportation with use of ISO locks.

Contact us for more technical information and prices.
